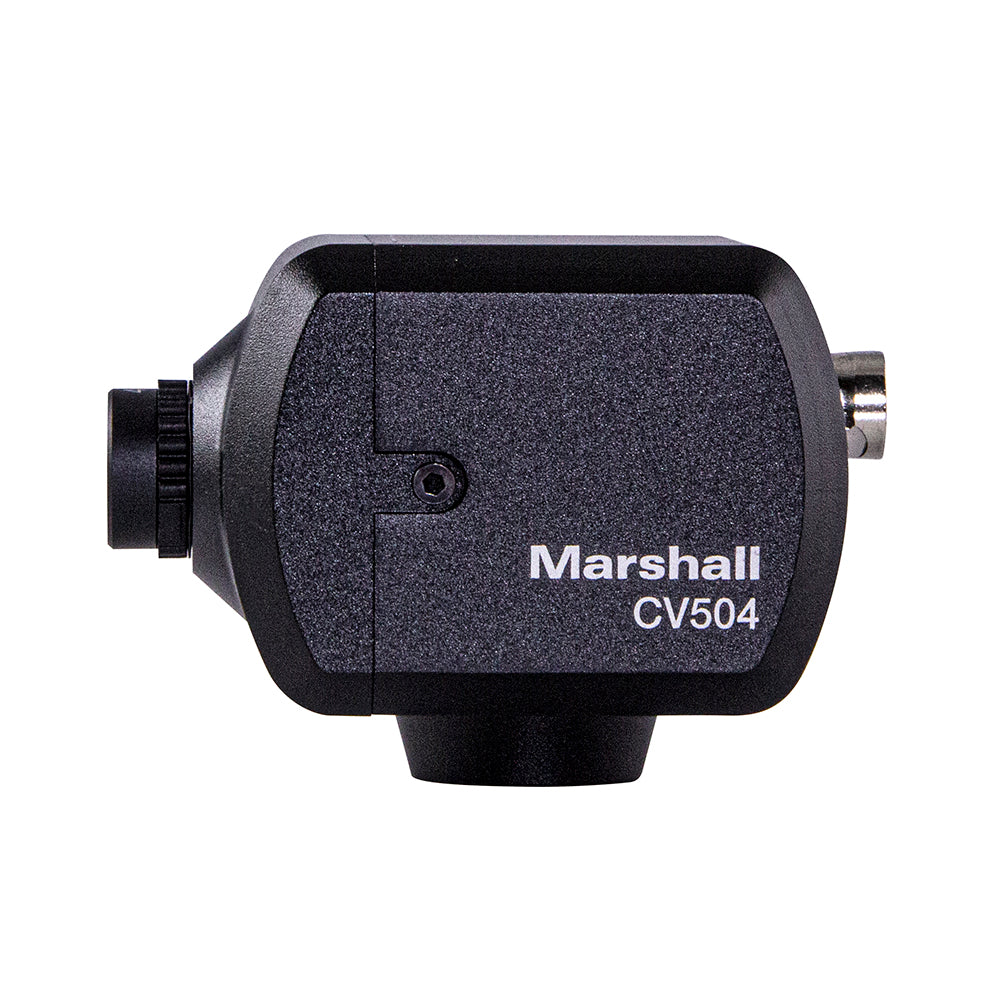

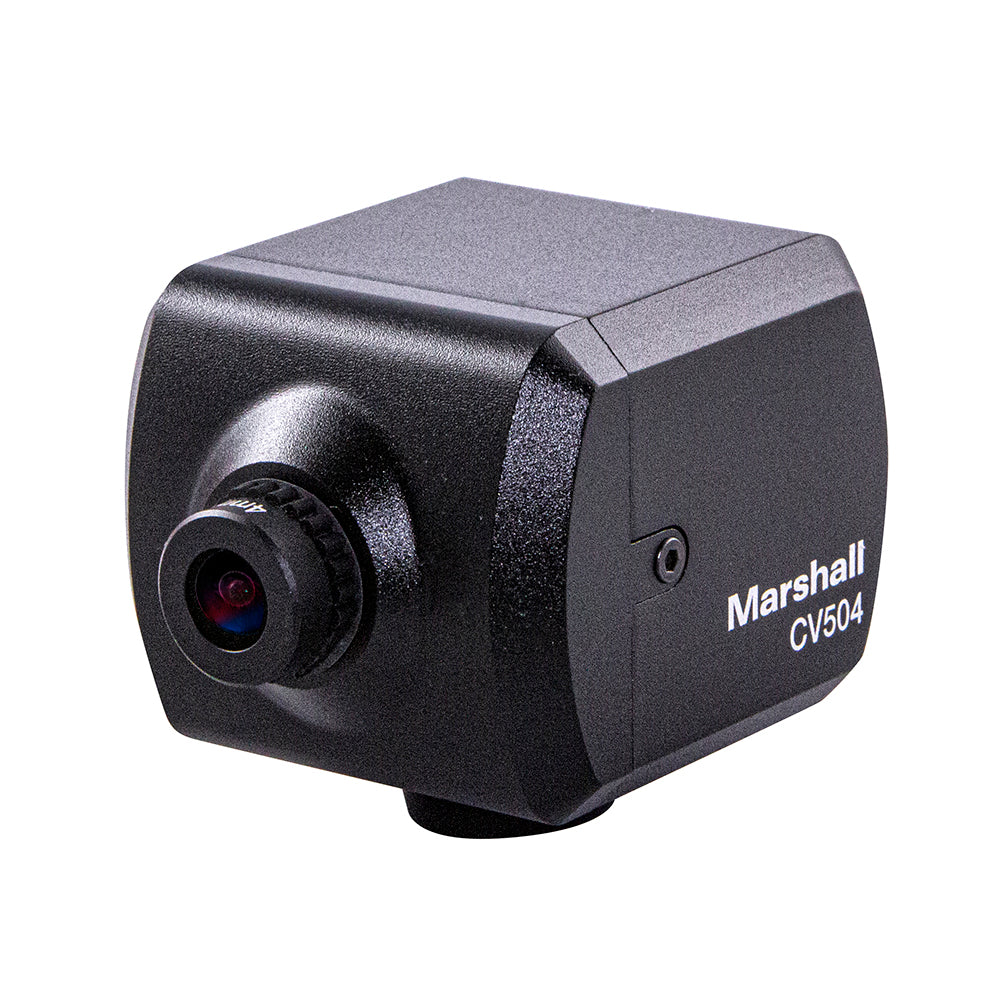

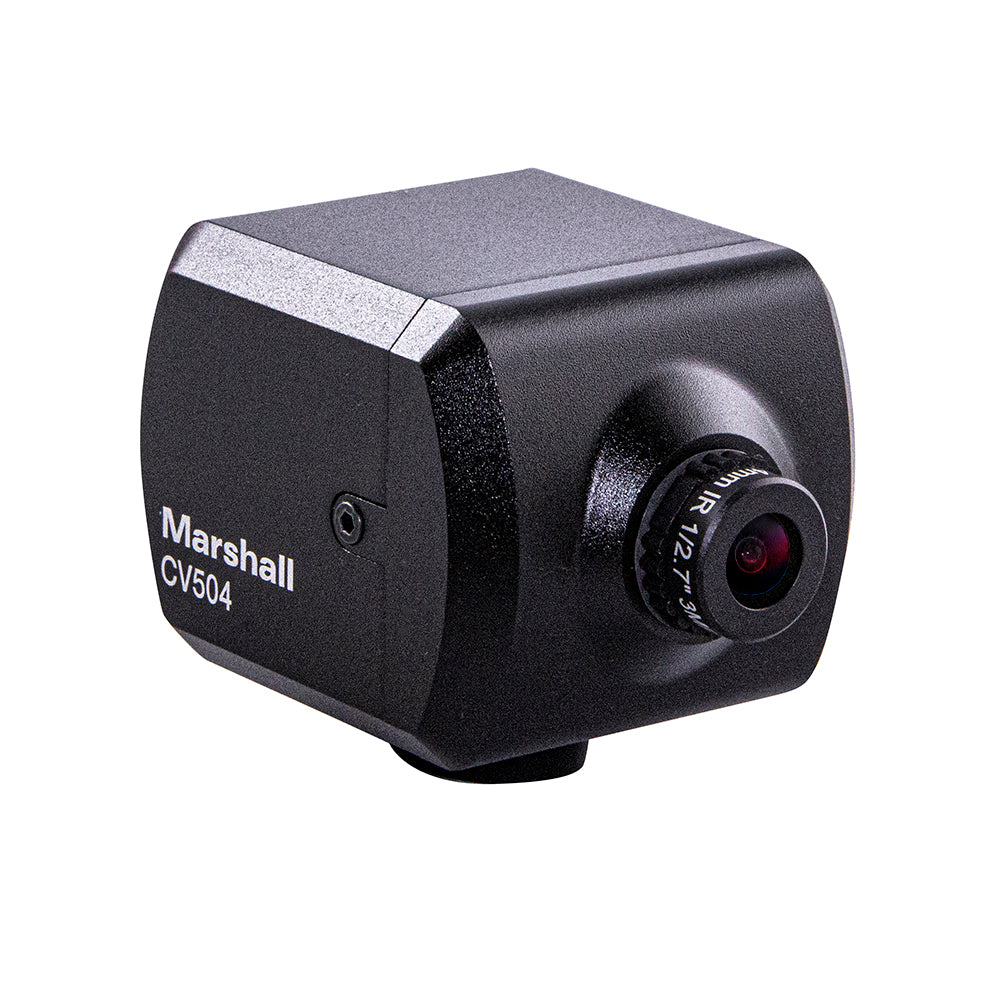

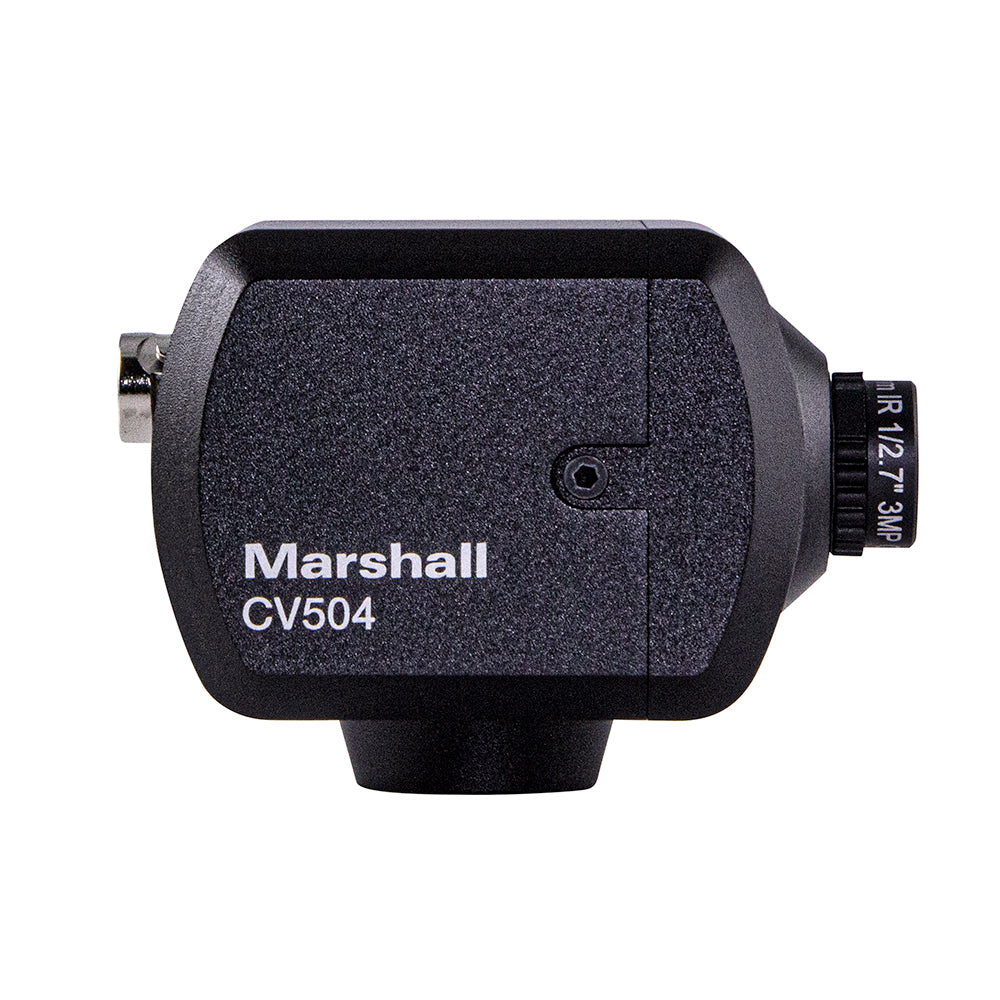

Marshall Electronics CV504 Mini HD Camera (3G/HD-SDI)

Marshall Electronics CV504 Mini HD Camera (3G/HD-SDI)

Regular price $570.00 SGD
Regular price $643.00 SGD Sale price $570.00 SGD
Sale Sold out

The Marshall CV504 POV camera is built around a next generation Sony sensor with over 2 million pixels and larger pixels. The micro CV504 delivers exceptional 10 bit 4:2:2 video performance (BT.709) from a durable aluminum alloy body through 3GSDI (BNC) output and flexible interchangeable lenses. The new Sony sensors offer rich color accurate video with improved low light sensitivity and match capability.

  • 2.2 Megapixel Sony sensor with square pixel array

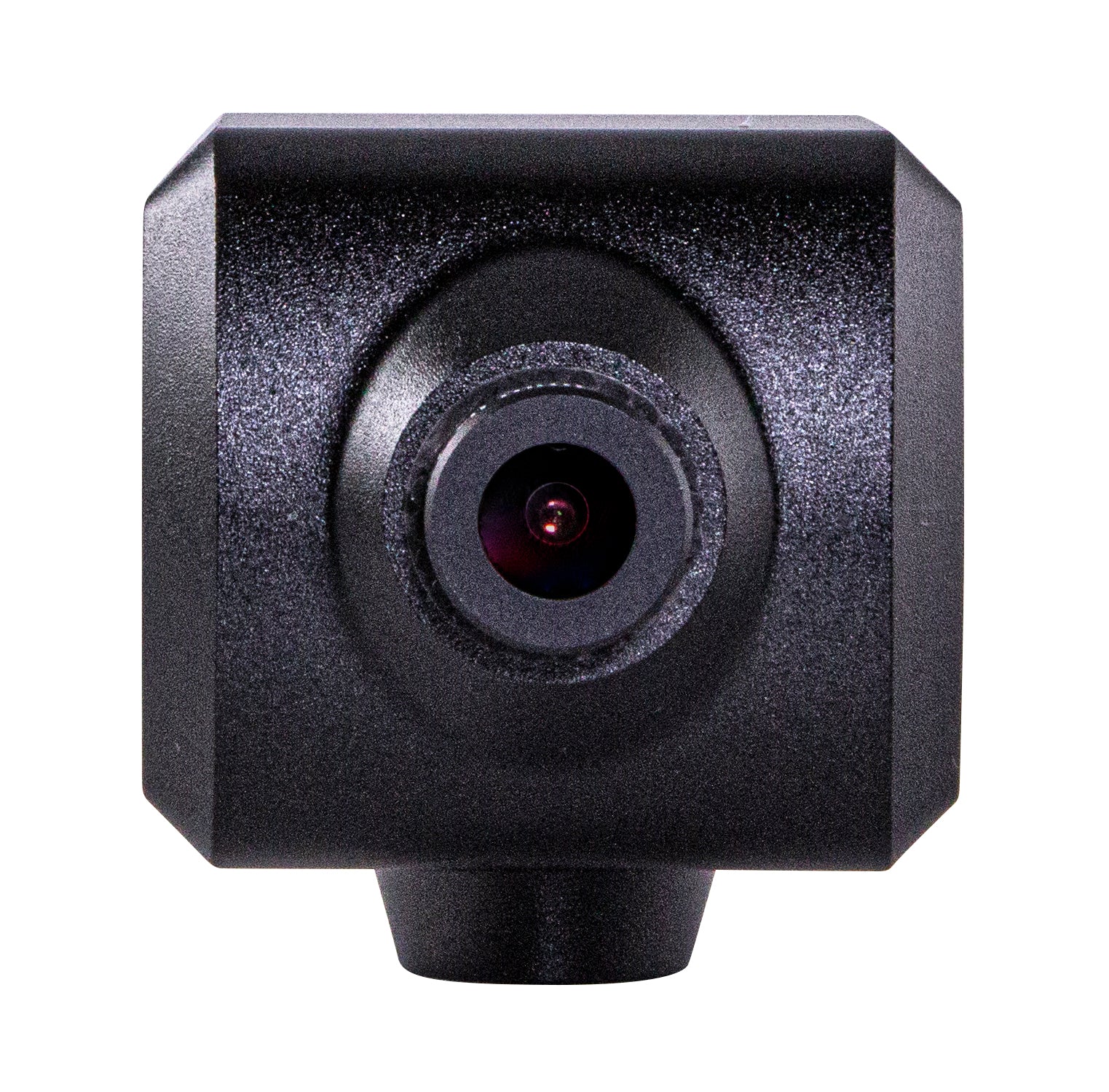

  • Interchangeable M12 lens mount; comes with a 4.0mm - 85° Horizontal AOV

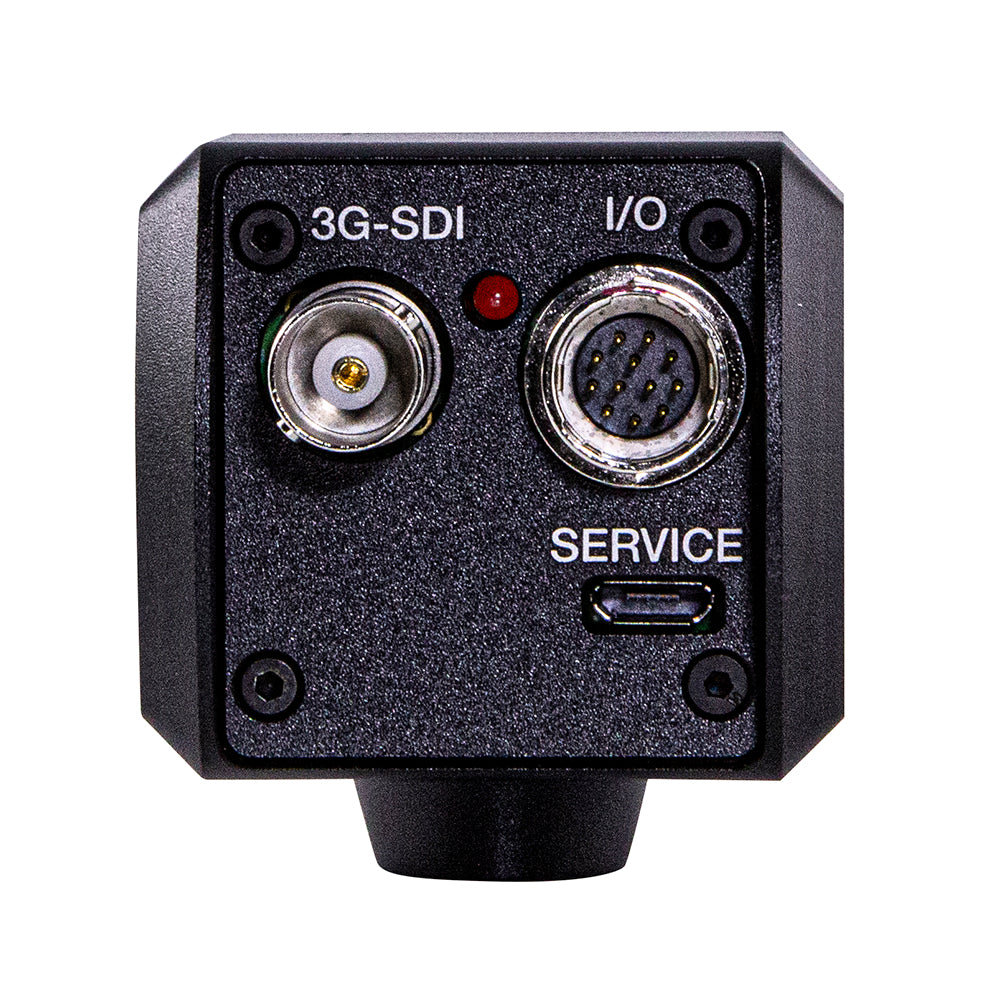

  • 3GSDI (BNC) 10bit, 4:2:2, BT.709 with remote adjust & match
  • 1920x1080p, 1920x1080i & 1280x720p resolutions selectable
  • Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
  • Control via CV-RCP-V2, Camera Control Software and/or a variety of 3rd party sources
  • Micro-USB port for field upgradeable firmware via PC
  • Locking Hirose cable (included) for OSD menu joystick, RS485, AUDIO and power
  • Audio Line input does not provide power to the audio device. Mic will use Mic Bias 1.7V and up to 3mA max current
  • Weight: 0.3lbs (0.136kg); approx dims: 40mm x 44mm x 55mm
  • Power: 12V+/-10% drawing 2.64W (max 6W)

The Micro CV504 is suitable for use in 3GSDI workflows where image quality and versatility are of utmost concern, including live broadcast, productions, concerts, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, live performance, house of worship and many more.

Product Link:

https://marshall-usa.com/cameras/CV504/
