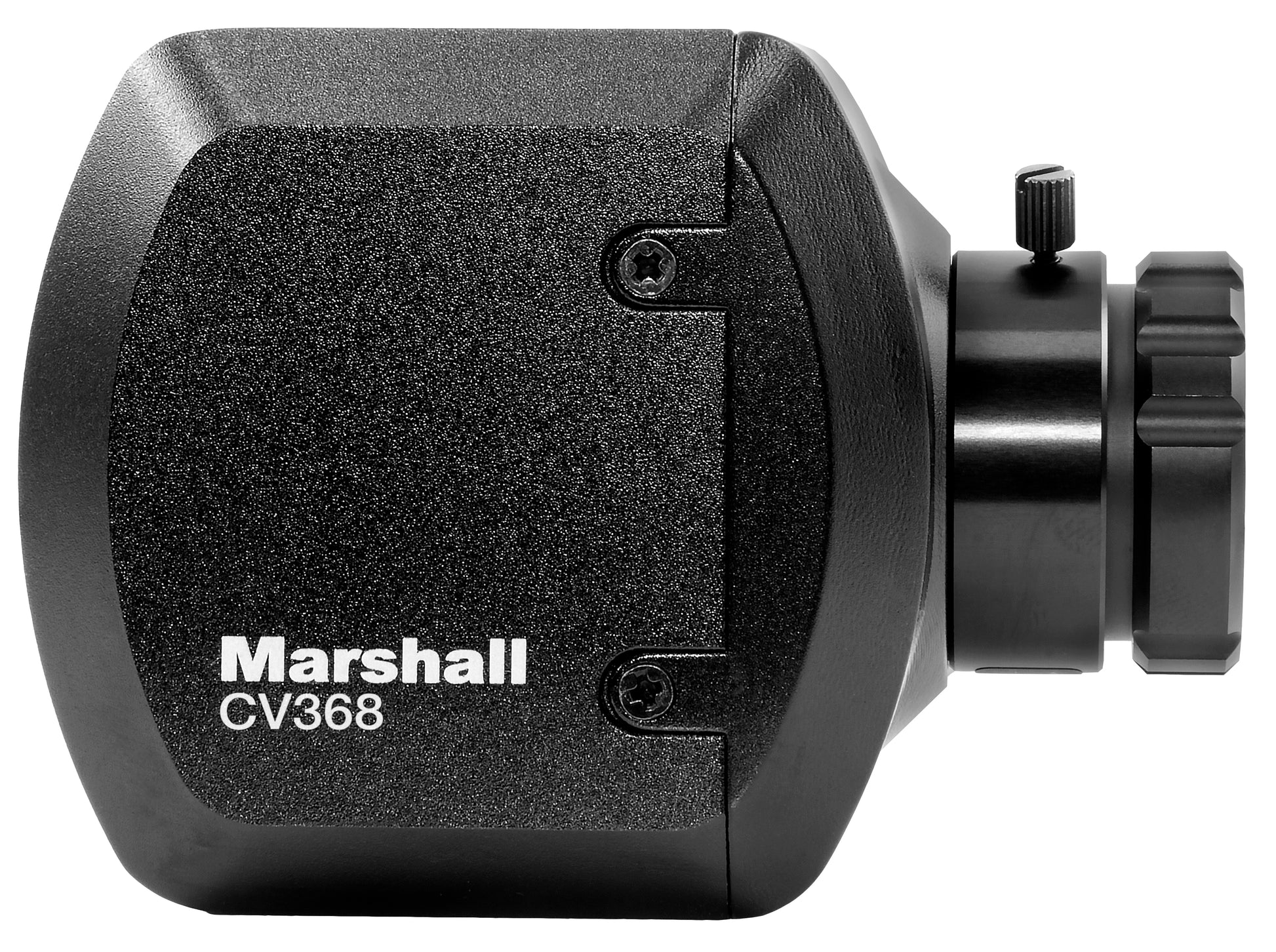

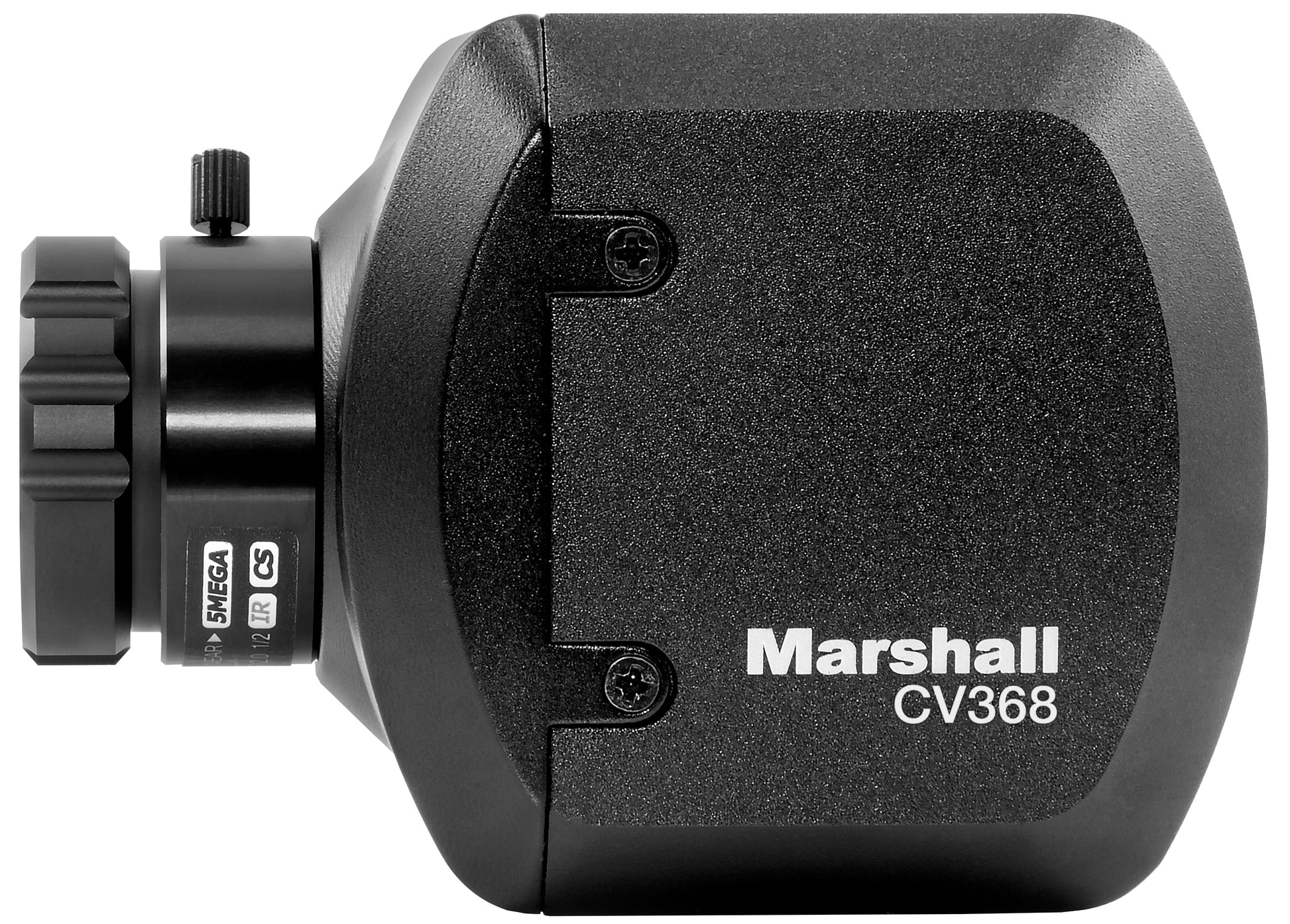

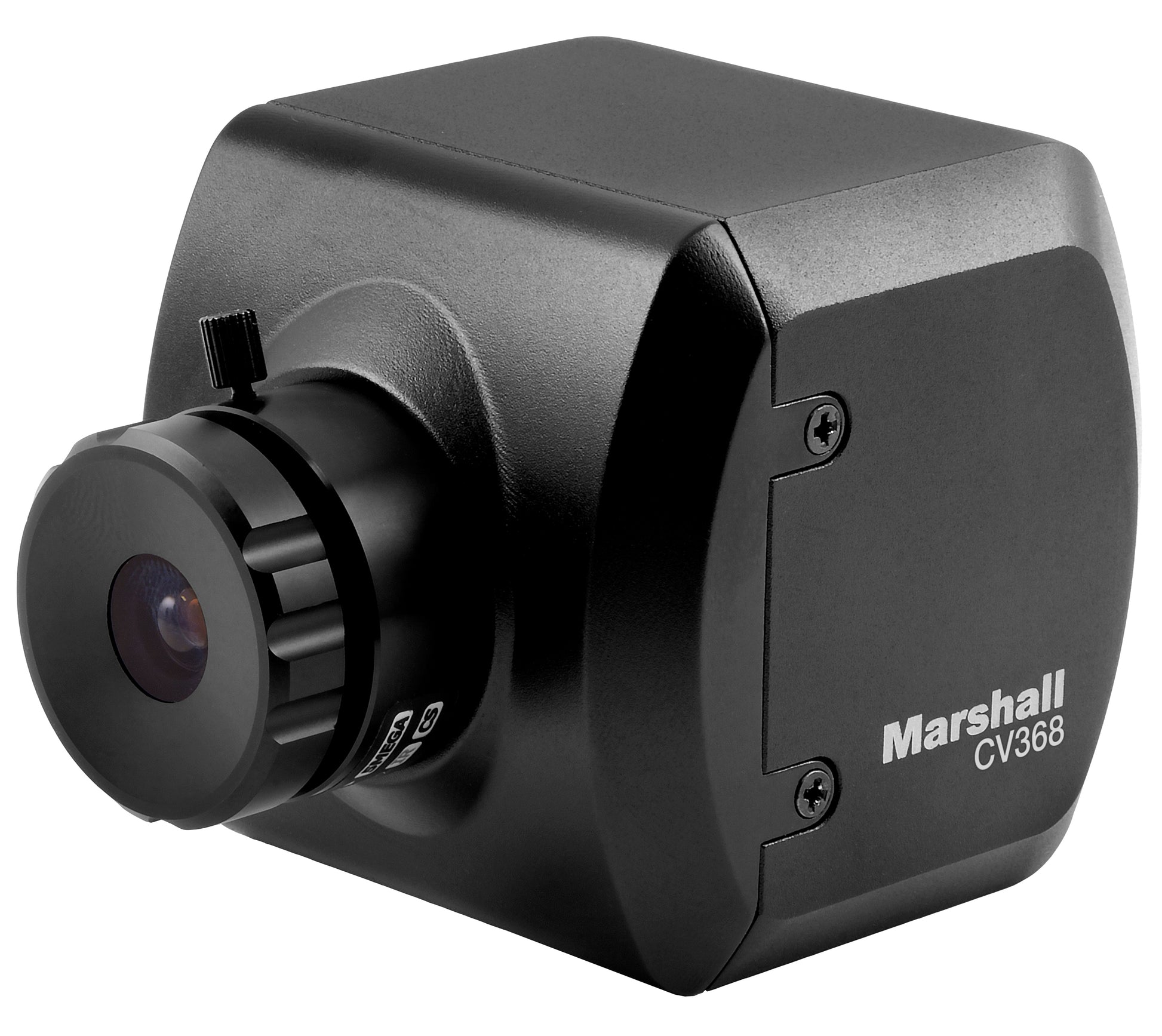

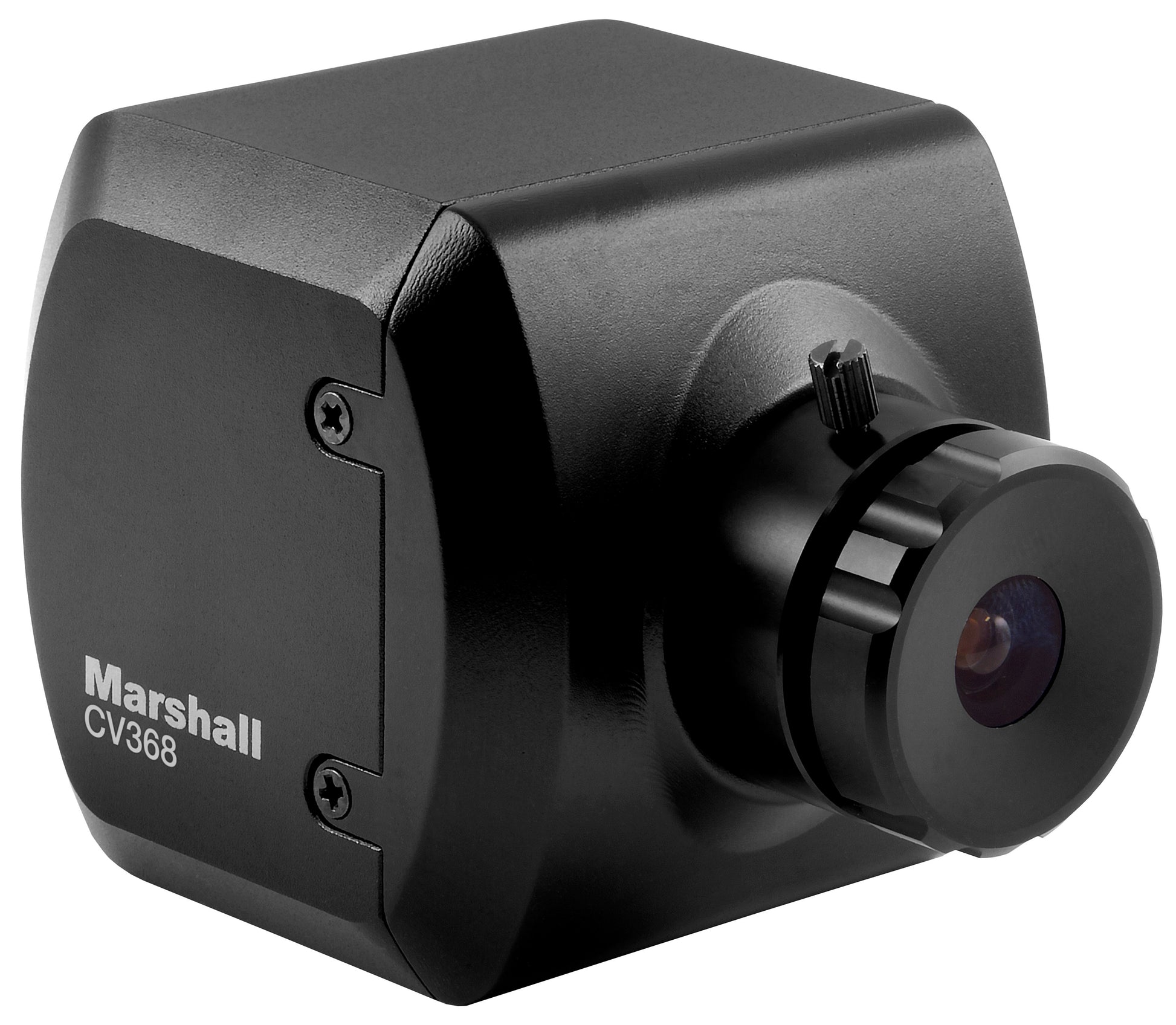

Marshall Electronics CV368 Compact 1080p 3G-SDI/HDMI Camera with Global Shutter & Genlock

Compact HD Camera with Global Shutter and Genlock Sync features. Built around an impressive 1/1.8" Sony global sensor with 25% larger pixels and flexible CS lens mount (lens sold separately) make this the most capable POV camera in the compact camera lineup.

• Large 1/1.8" Global Shutter Sensor
• 3.2 Megapixels with 25% larger pixel size

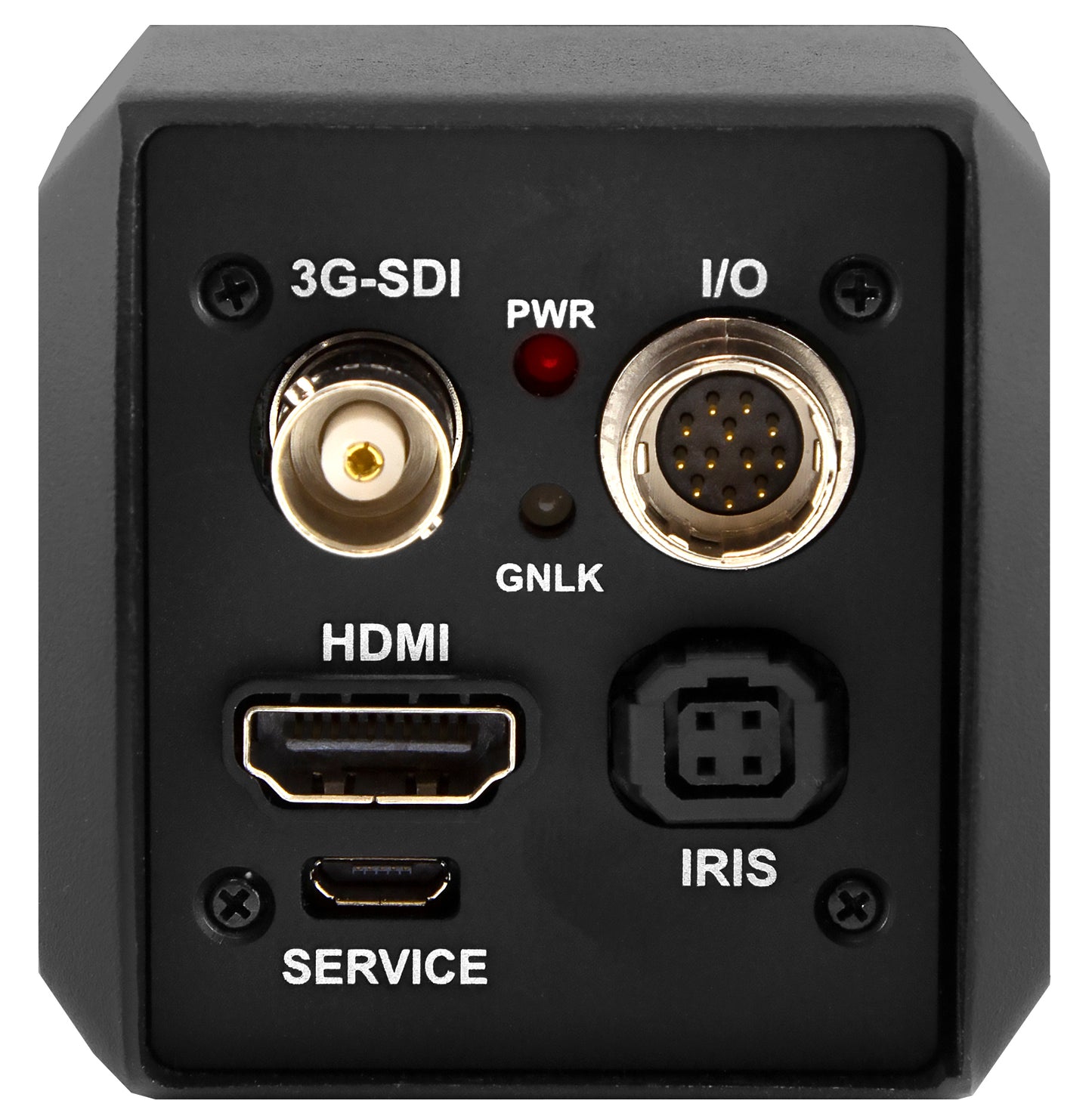

• Simultaneous 3GSDI & HDMI outputs
• Mic/Line Level (2.5V bias), AUDIO stereo embedding up to 48kHz
• Audio Line input does not provide power to the audio device. Mic will use Mic Bias 1.7V and up to 3mA max current

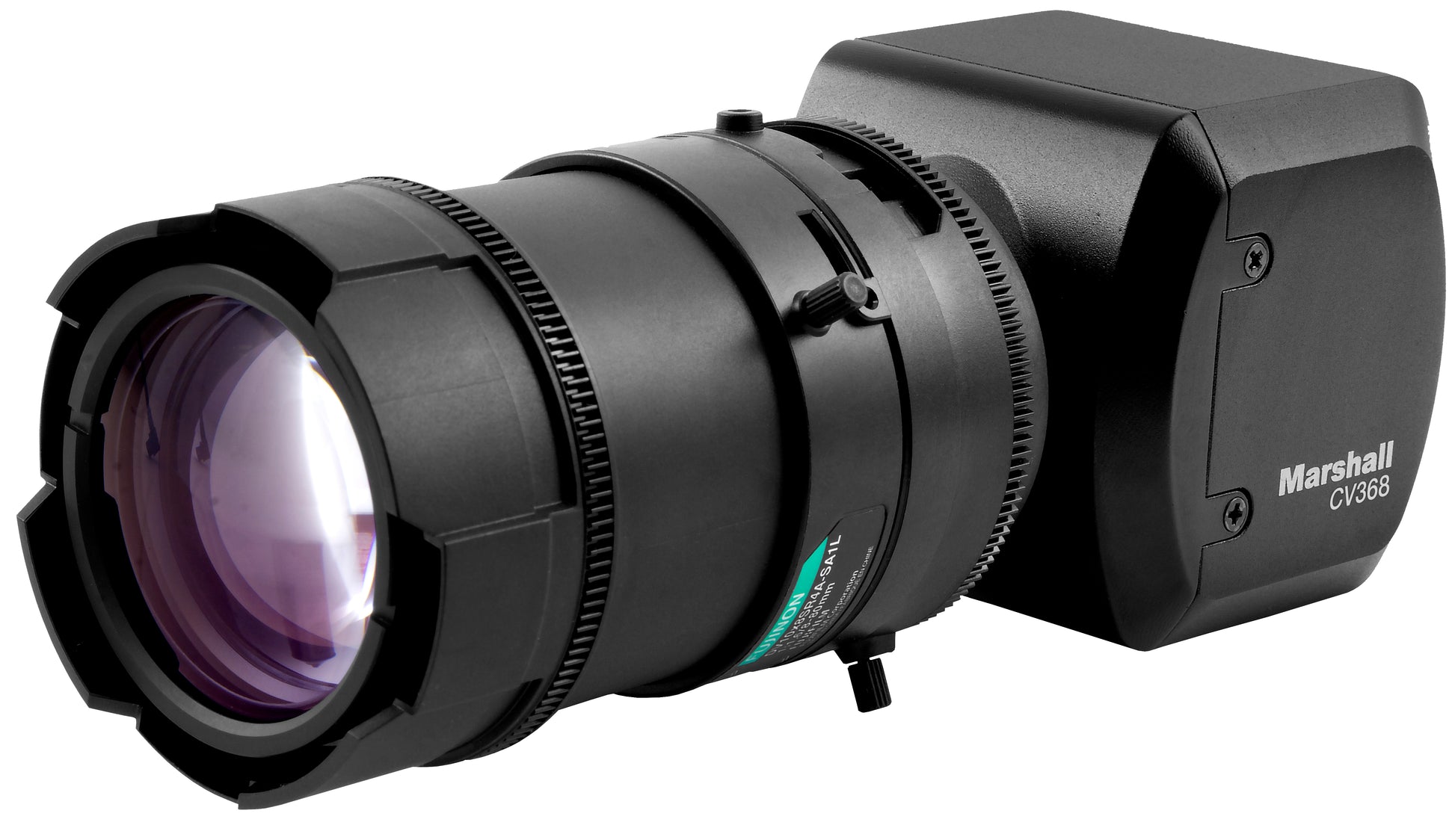

• Flexible CS/C Lens Mount (lens sold separately)
• Tri-Level Sync (Genlock) for faster, more accurate camera switching
• SMPTE 424M (2.97Gbps) - 3GSDI:
• 1920x1080p @ 50, 59.94, 60fps
• SMPTE 292M (1.485Gbps) - HDSDI:
• 1920x1080p @ 23.97, 24, 25, 29.97, 30fps
• 1920x1080i @ 50, 59.94, 60fps
• 1280x720p @ 50, 59.94, 60fps
• Image Mirror/Flip, Digital Zoom, Digital Image Stabilizer
• Microphone/Line Level input with 2.5V Mic bias
• Color Matrix feature: Style, Master Level, Master Phase, Color Level, Color Phase
• Environmental: -10°C ~ 50°C
• 12v power supply, can operate 12V+/-10% with a 6 watt draw

Applications:

Broadcast, Production, Sports, Racing, Newscast, Weathercast, Live Events, Aerospace, House of Worship, Courtroom, Government, Education, eSports, Nature, Live Concert, Podcast, Studio, Stage, Science and Technology

Product Link:

https://marshall-usa.com/cameras/CV368/
